Simply gorgeous. The modern and elegant design and naturally expressive, high-quality sound complements any room.

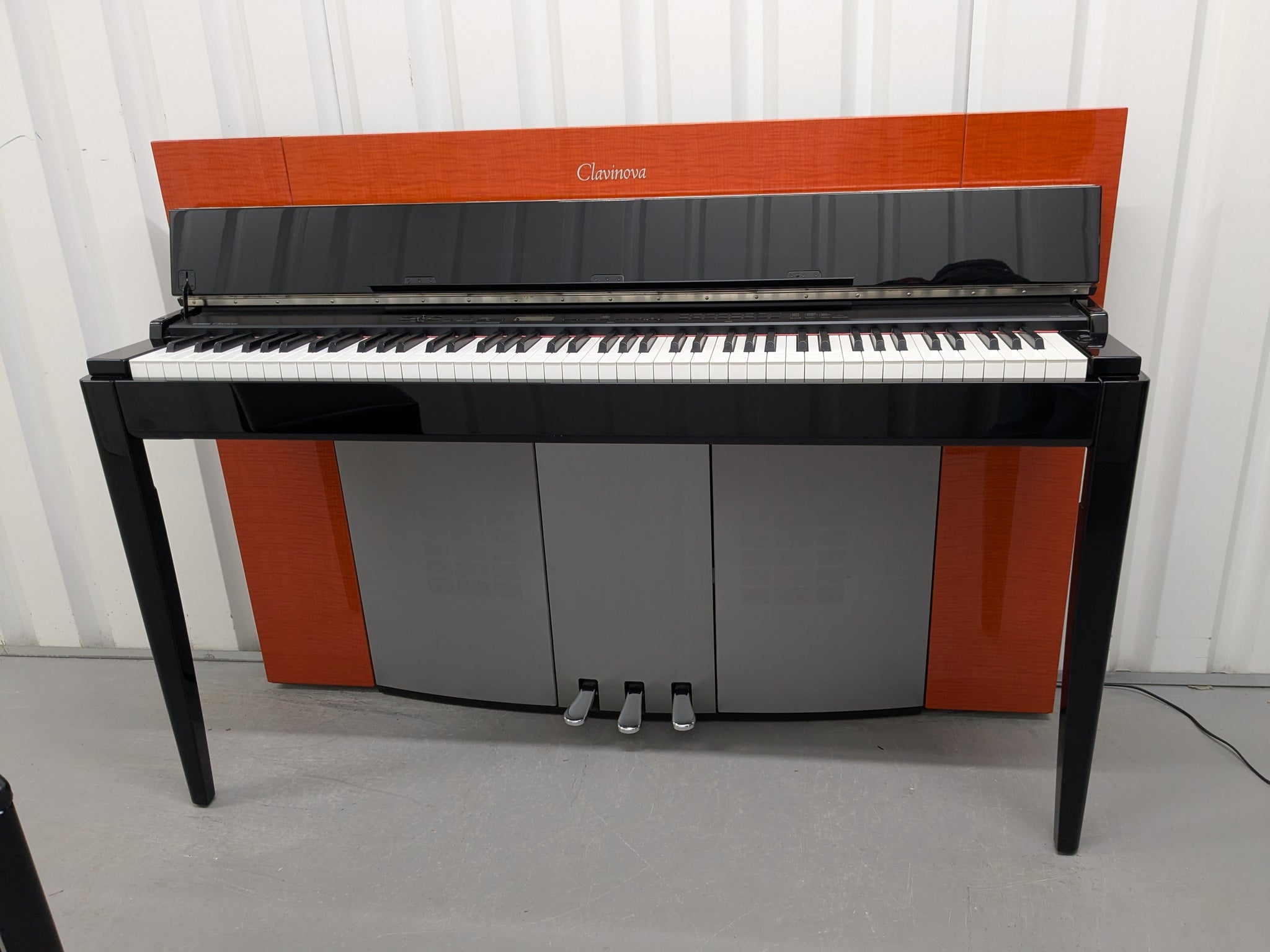

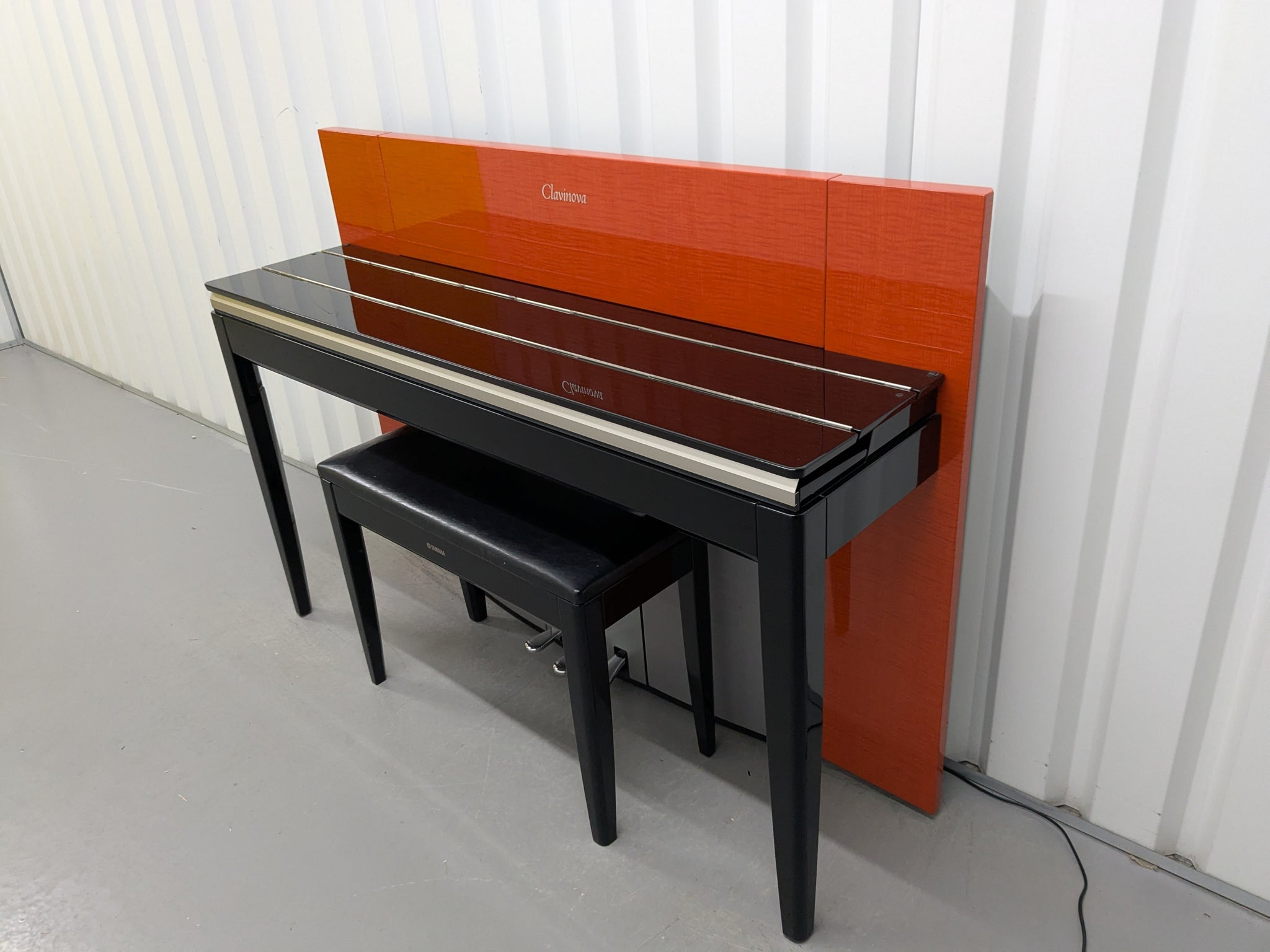

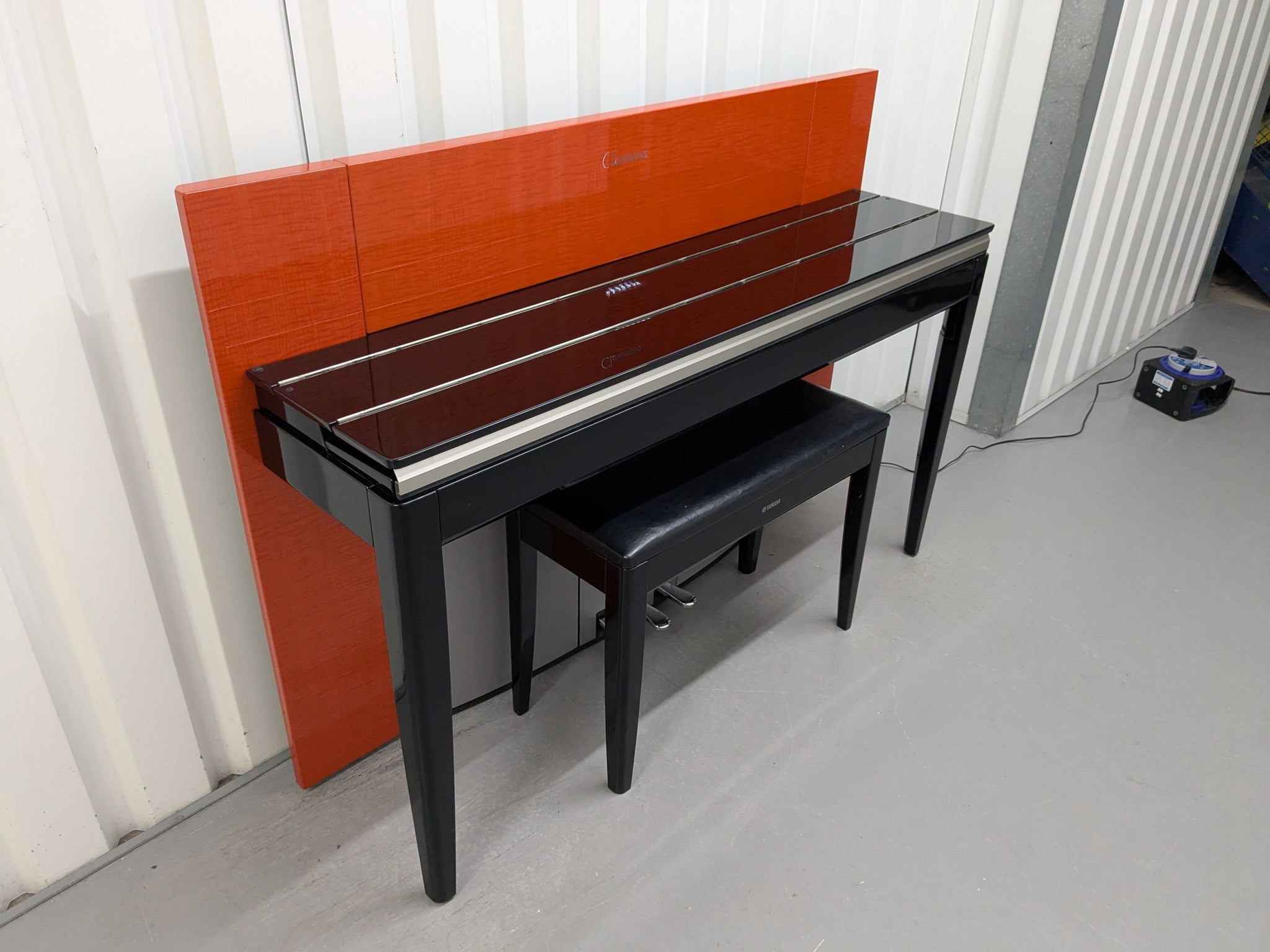

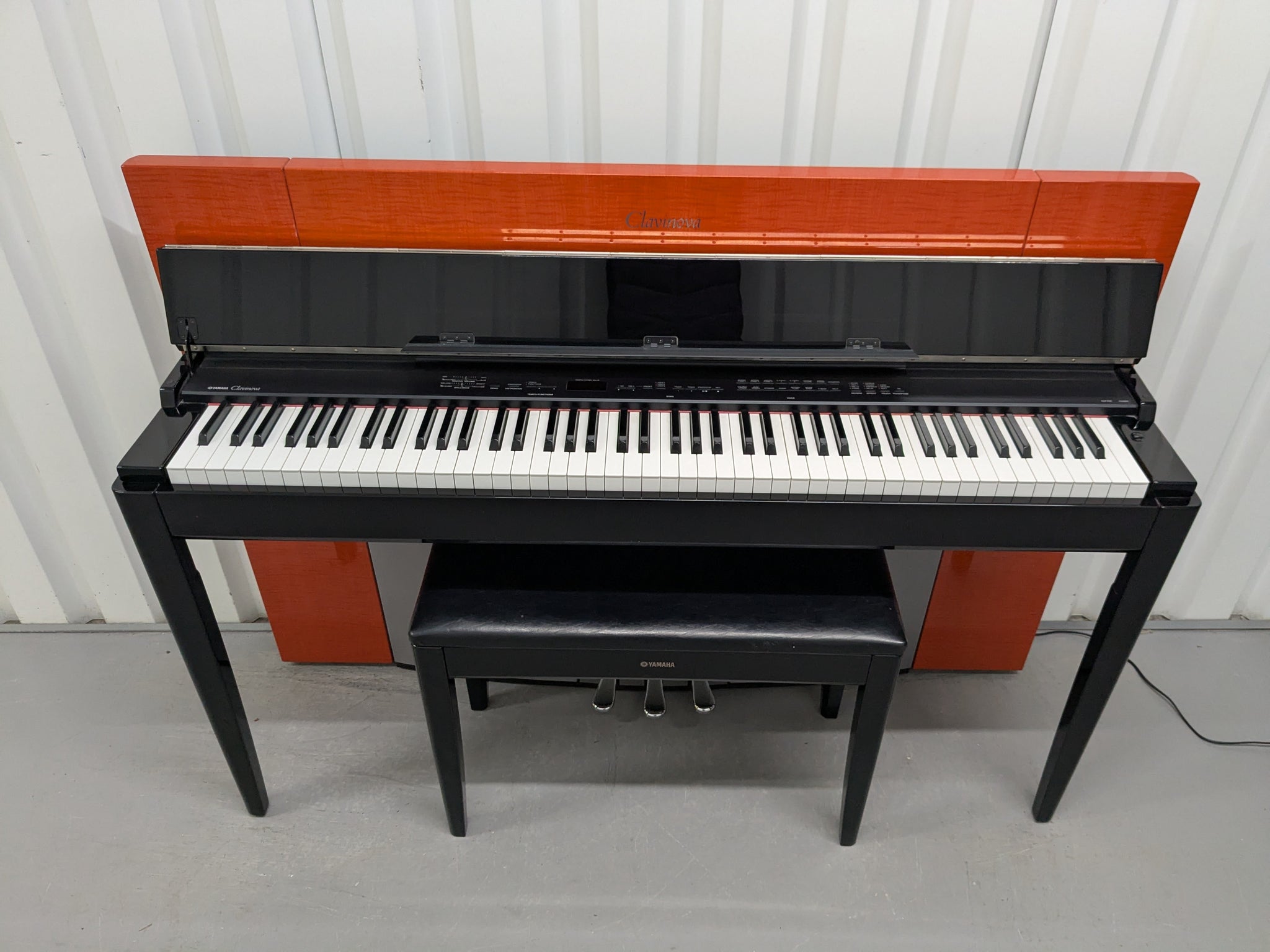

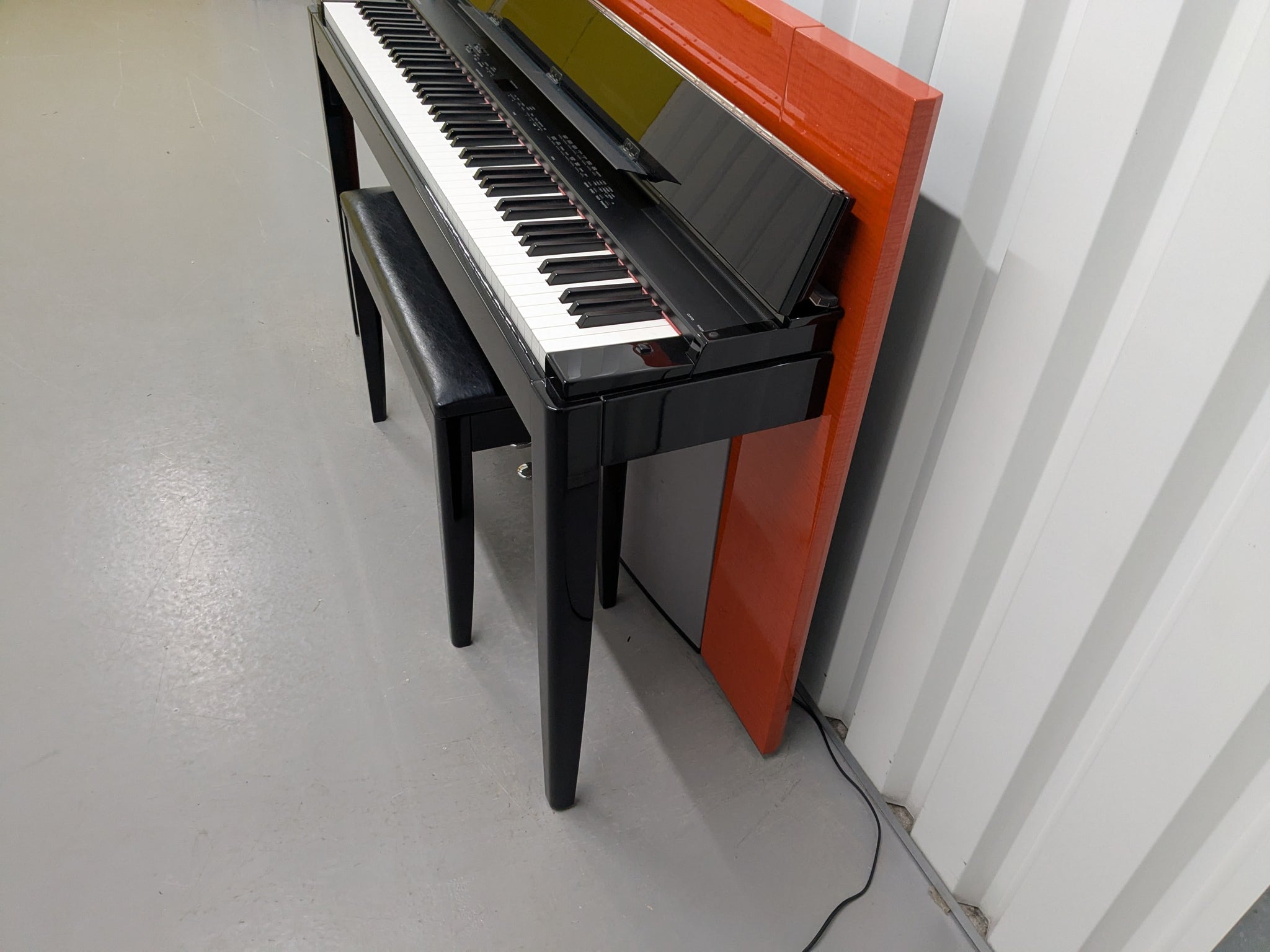

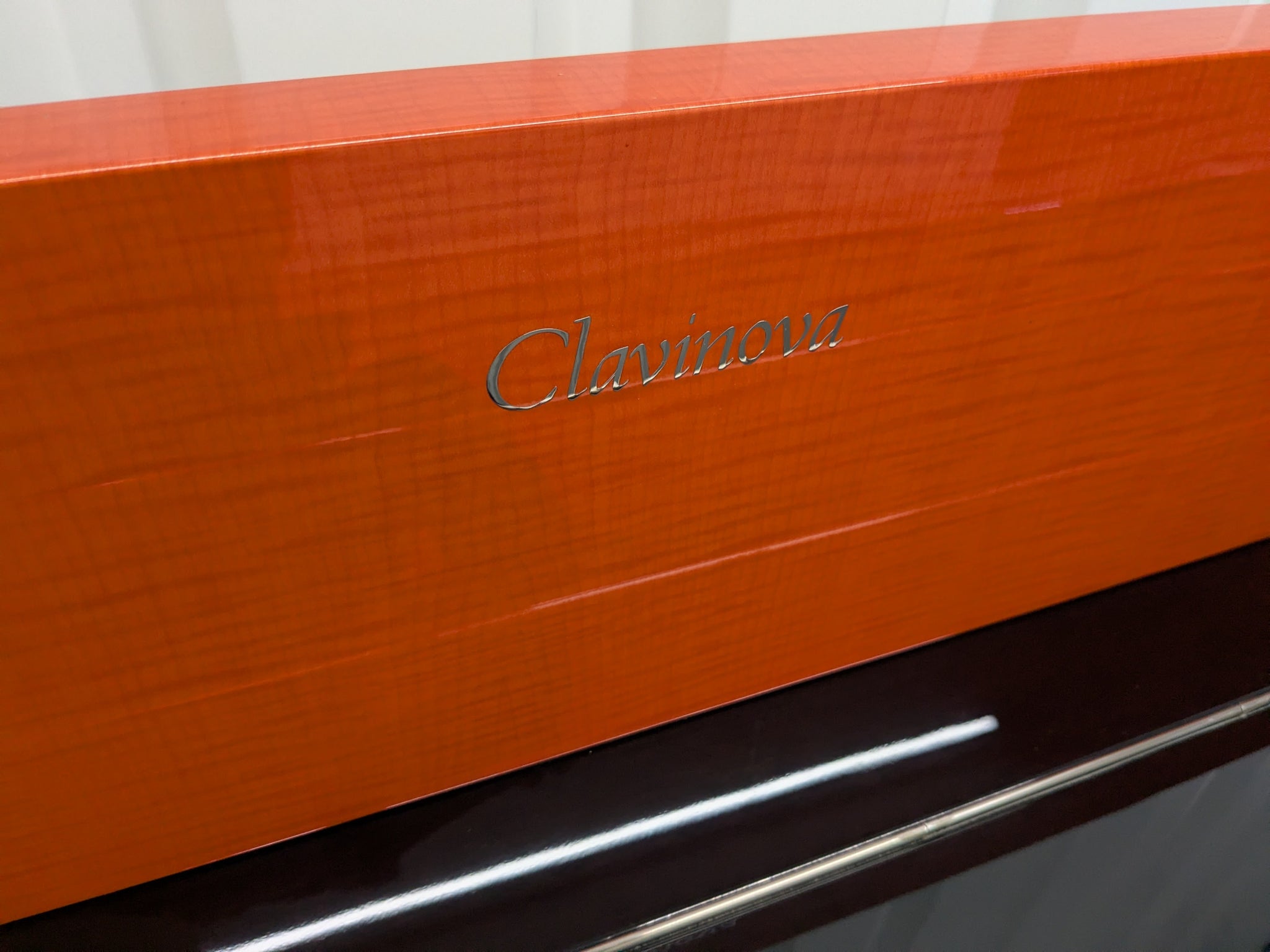

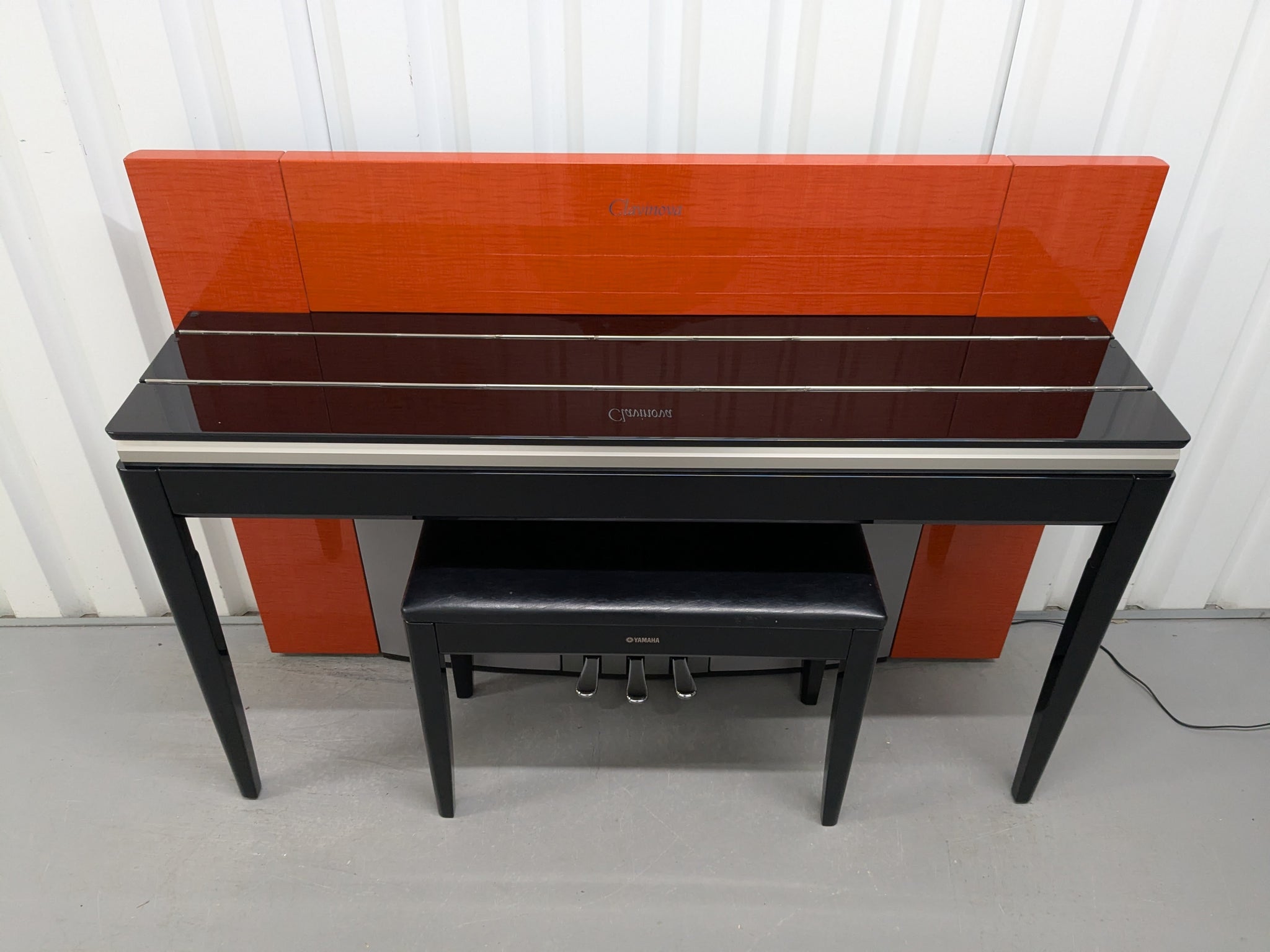

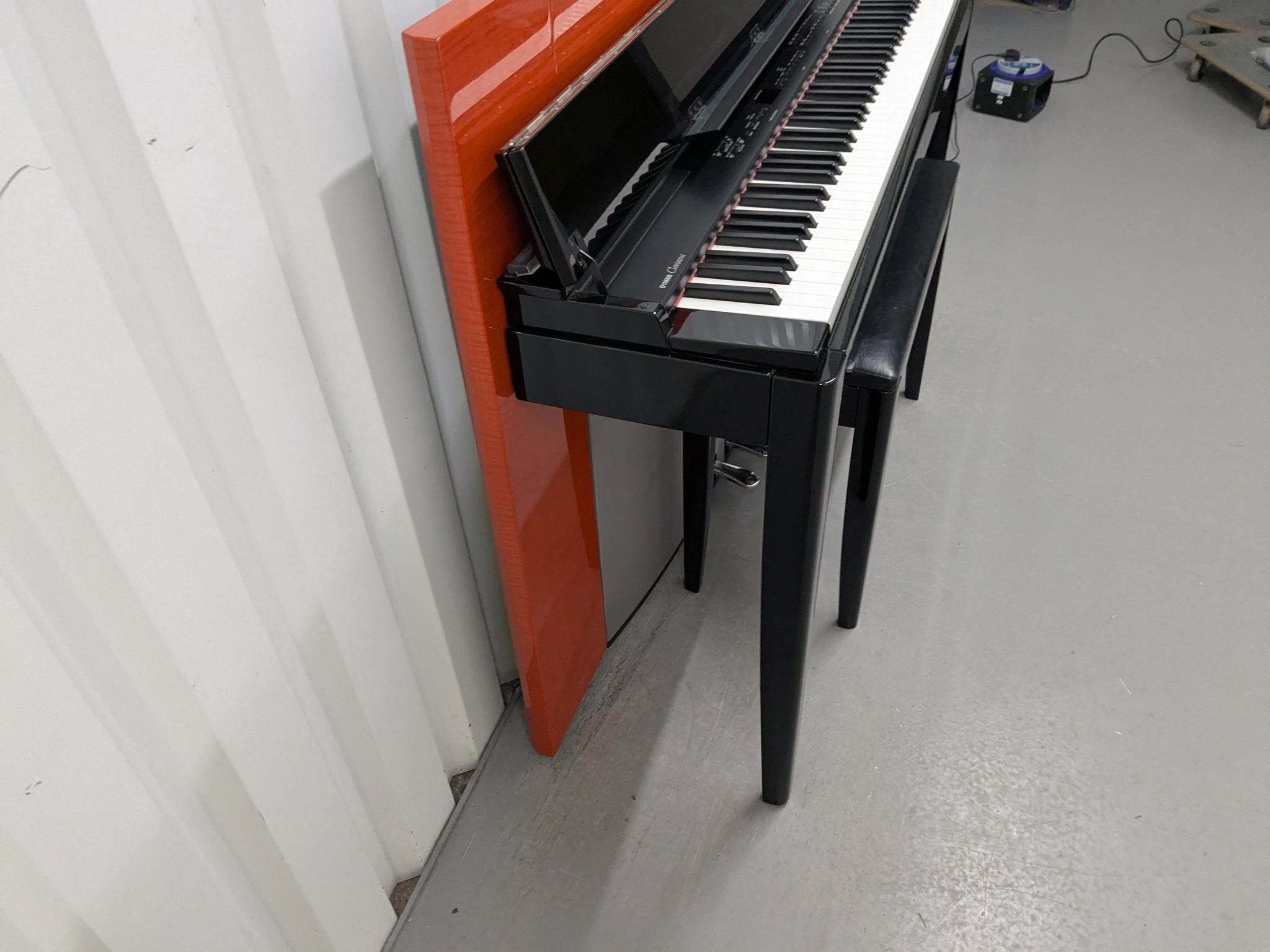

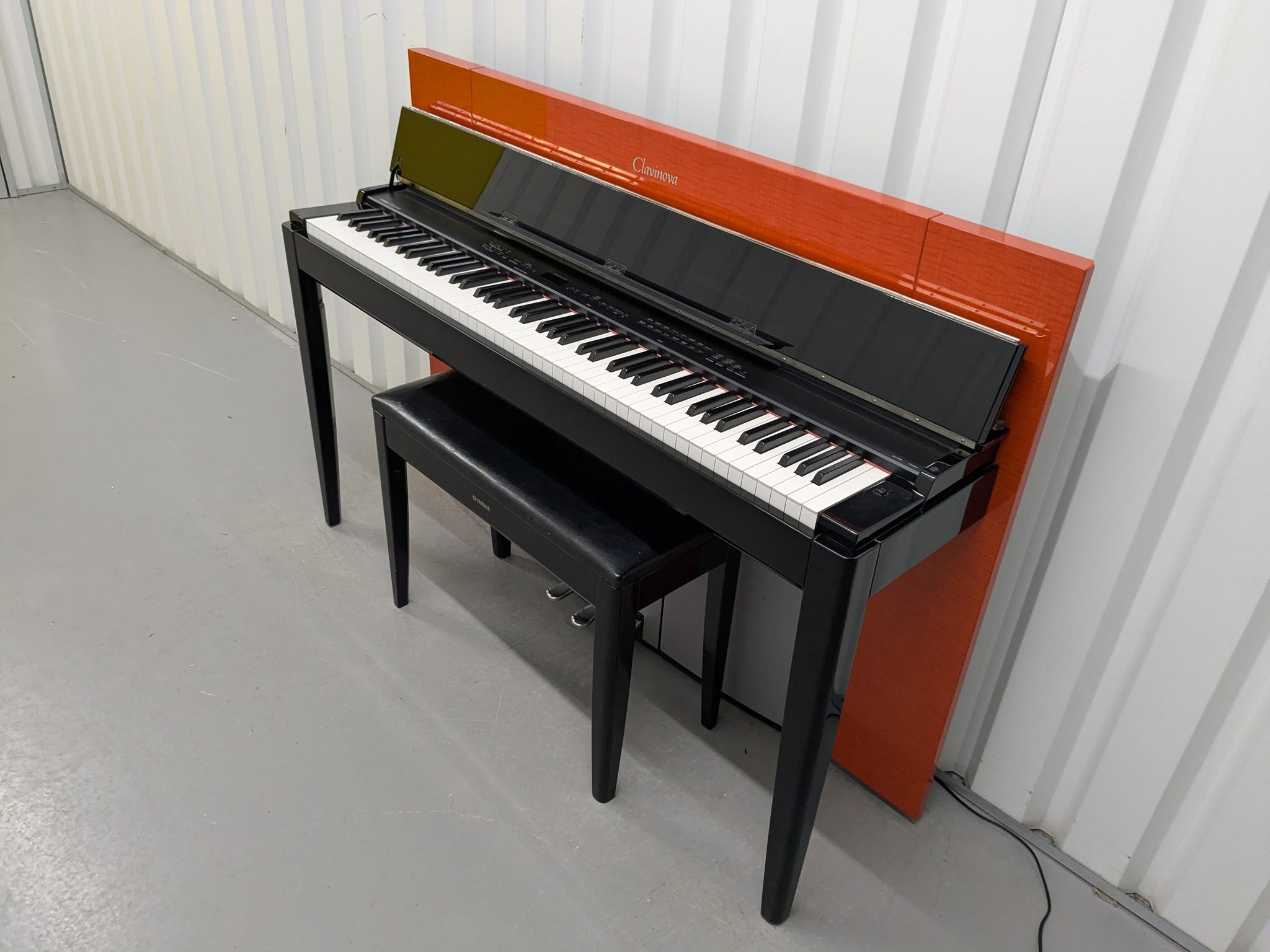

The sleek, sophisticated MODUS in closed position reveals a streamlined configuration that resembles console tables from America’s finest furniture collection. Standing flush against the wall, the Polished Orange plate frames the piano like a wondrous work of art.
USB Song Playback – Customize Your Music
Simply connect a USB flash memory device to the instrument, and your favorite songs in MIDI format are ready to be played sequentially or in random order.
SOUND DESIGN

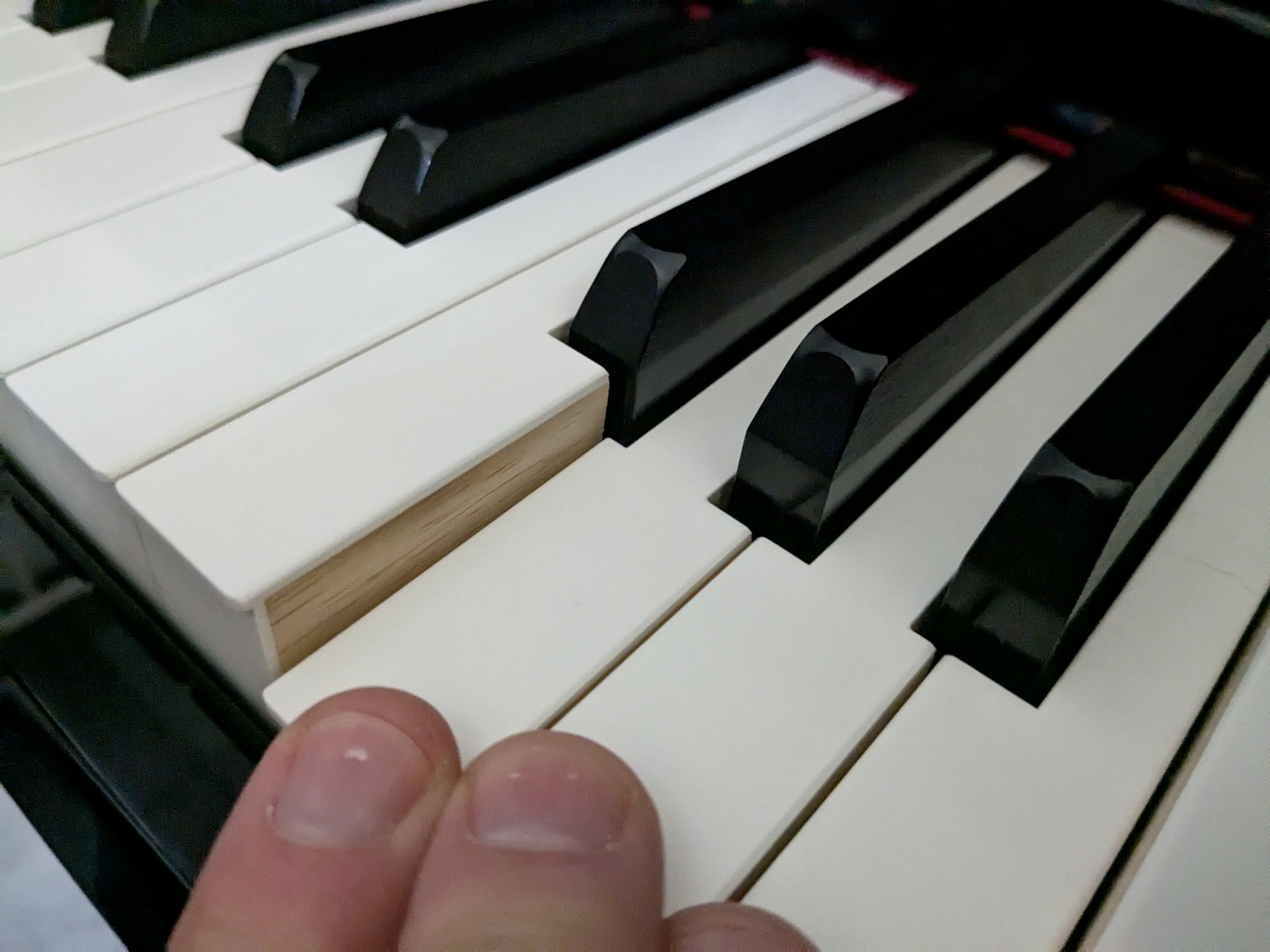

Natural Wood Keyboard
The Natural Wood Keyboard features real wood white keys and sophisticated technology that faithfully reproduces the experience of playing an actual acoustic grand piano.
AWM Dynamic Stereo Sampling
To offer truly authentic sound, Yamaha takes piano voice sampling to a whole new level for rich, musical voices. The Grand Piano voices are complex multi-samples painstakingly recorded from a full concert grand piano.
MODUS takes the realism of the grand piano sound to new heights with its Stereo Sustain and Key-Off samples. Stereo Sustain samples recreate the resonance of the strings and soundboard when the damper pedal is pressed contributing to the unique sound of a grand piano and Key-Off samples provide the delicate sound of the dampers touching strings as the keys are released.
Dimensions | Width | 1,427mm (56-3/16'') |
---|---|---|
Height | 995mm (39-3/16'') | |
Depth | 400mm (15-3/4'') | |
Weight | Weight | 76kg (167lbs., 9oz) |
Keyboard | Number of Keys | 88 |
Type | Natural Wood (NW) Keyboard | |
Touch Sensitivity | Hard/Medium/Soft/Fixed | |

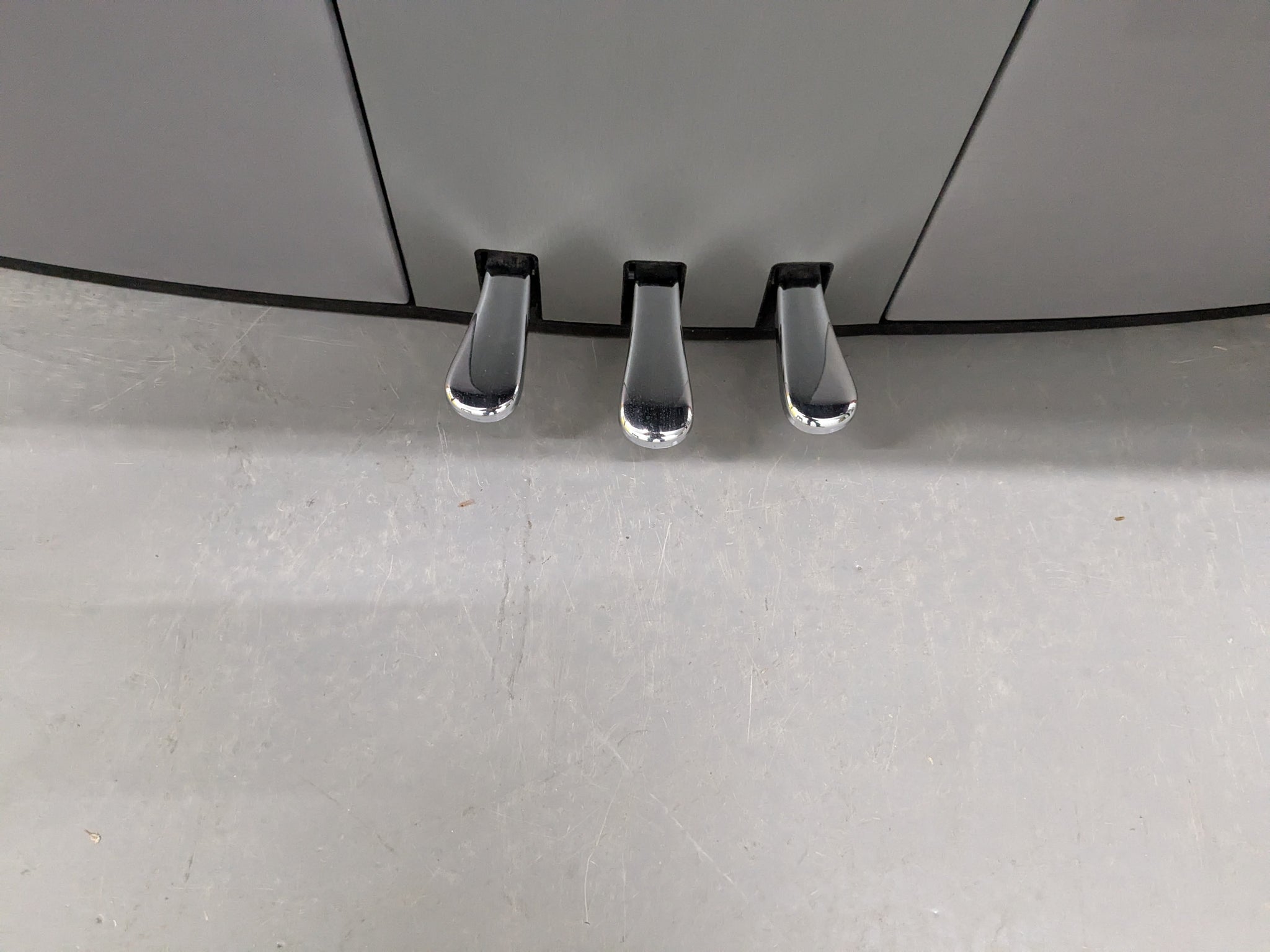

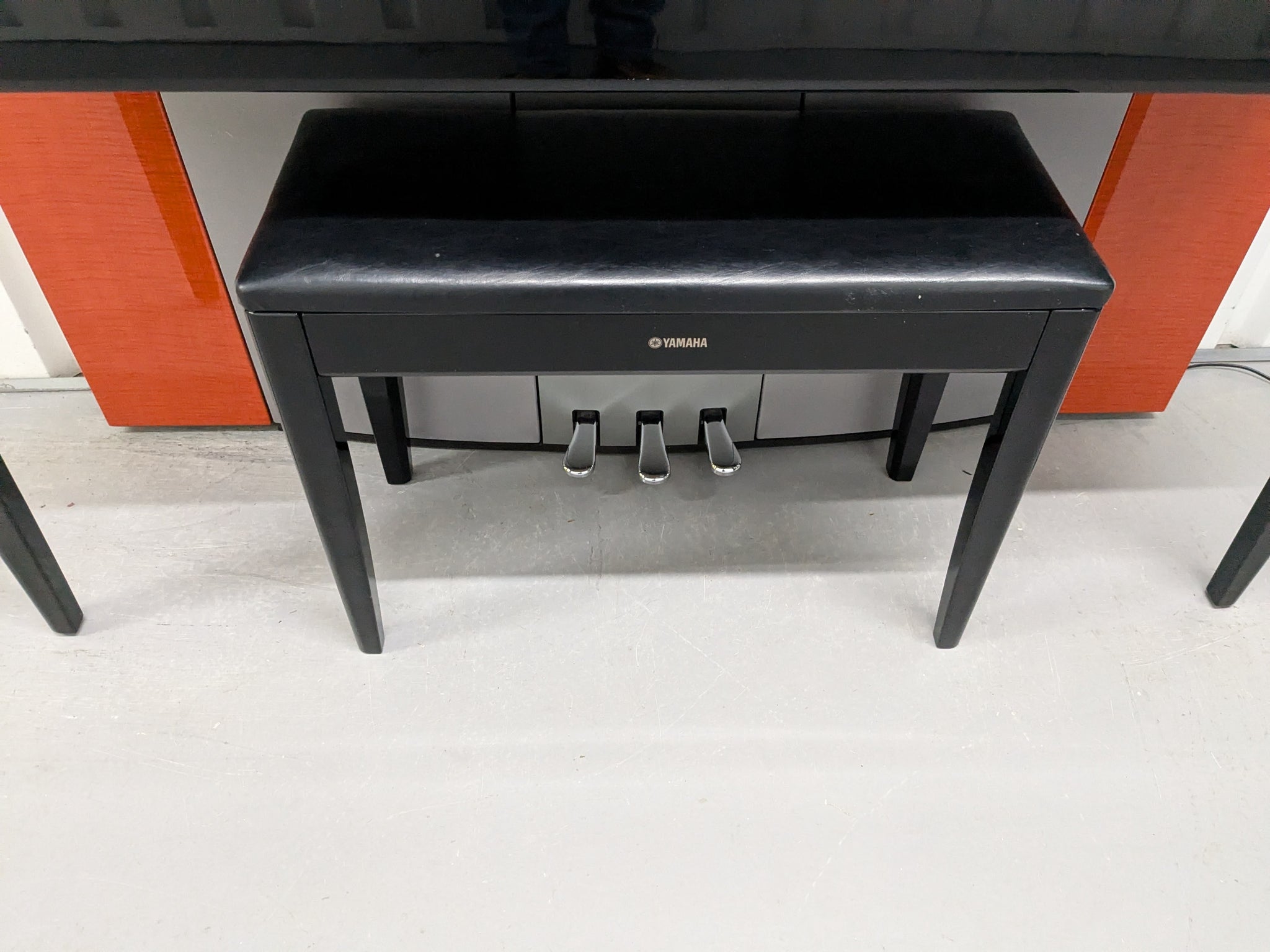

Pedal | Number of Pedals | 3 |
Half Pedal | Yes | |
Functions | Damper, Sostenuto, Soft | |

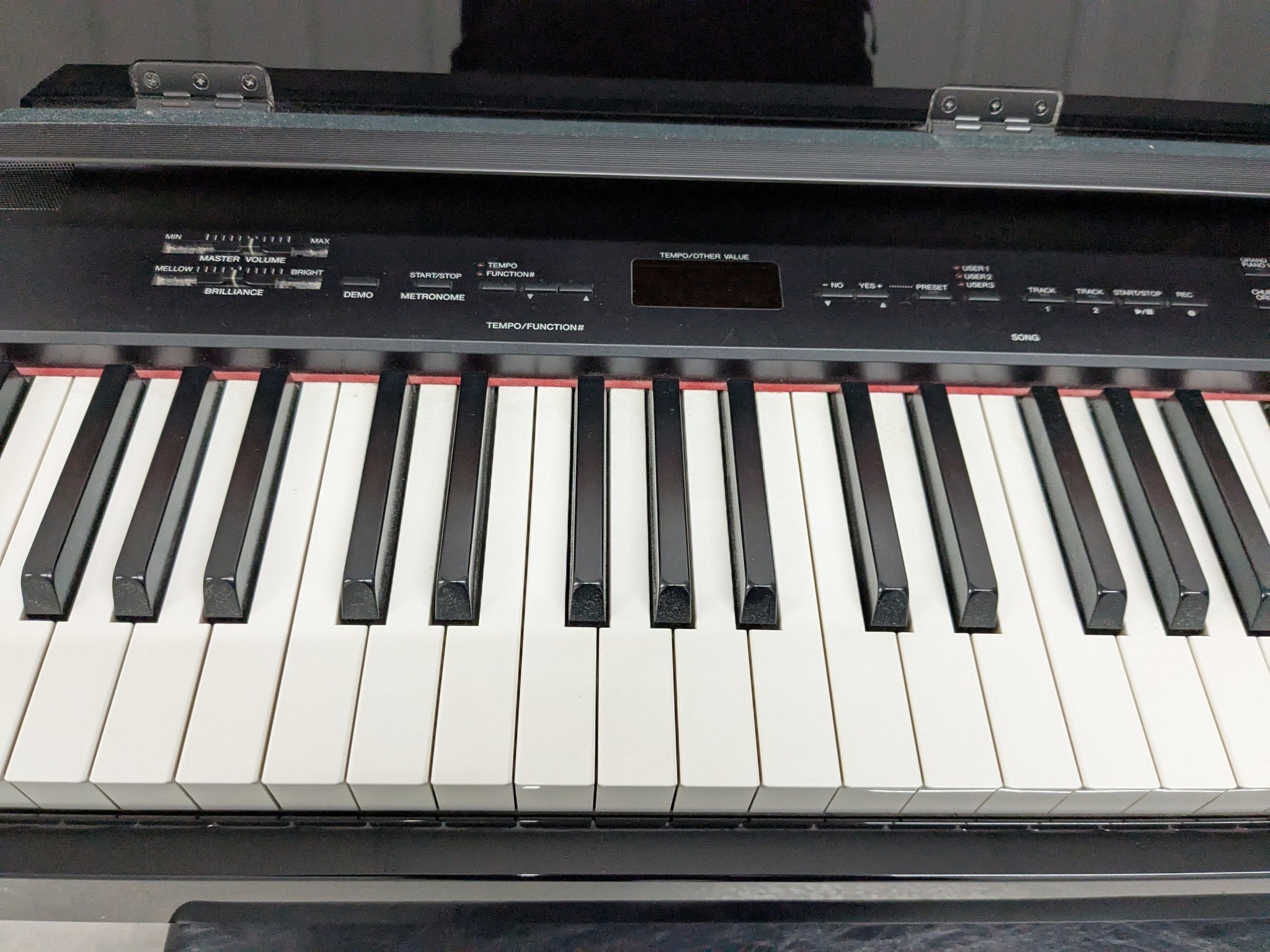

Display | Type | LED |
Size | 7-segment, 3-digit | |
Panel | Language | English |
Key Cover | Key Cover Style | Folding |
Color/Finish | Polished Orange, Polished Blue, Polished Ebony, Polished Red | |
Music Rest | Yes | |
Tone Generation | Tone Generating Technology | AWM Dynamic Stereo Sampling |
Number of Dynamic Levels | 3 | |
Stereo Sustain Samples | Yes | |
Key-off Samples | Yes | |
Polyphony | Number of Polyphony (Max.) | 64 |

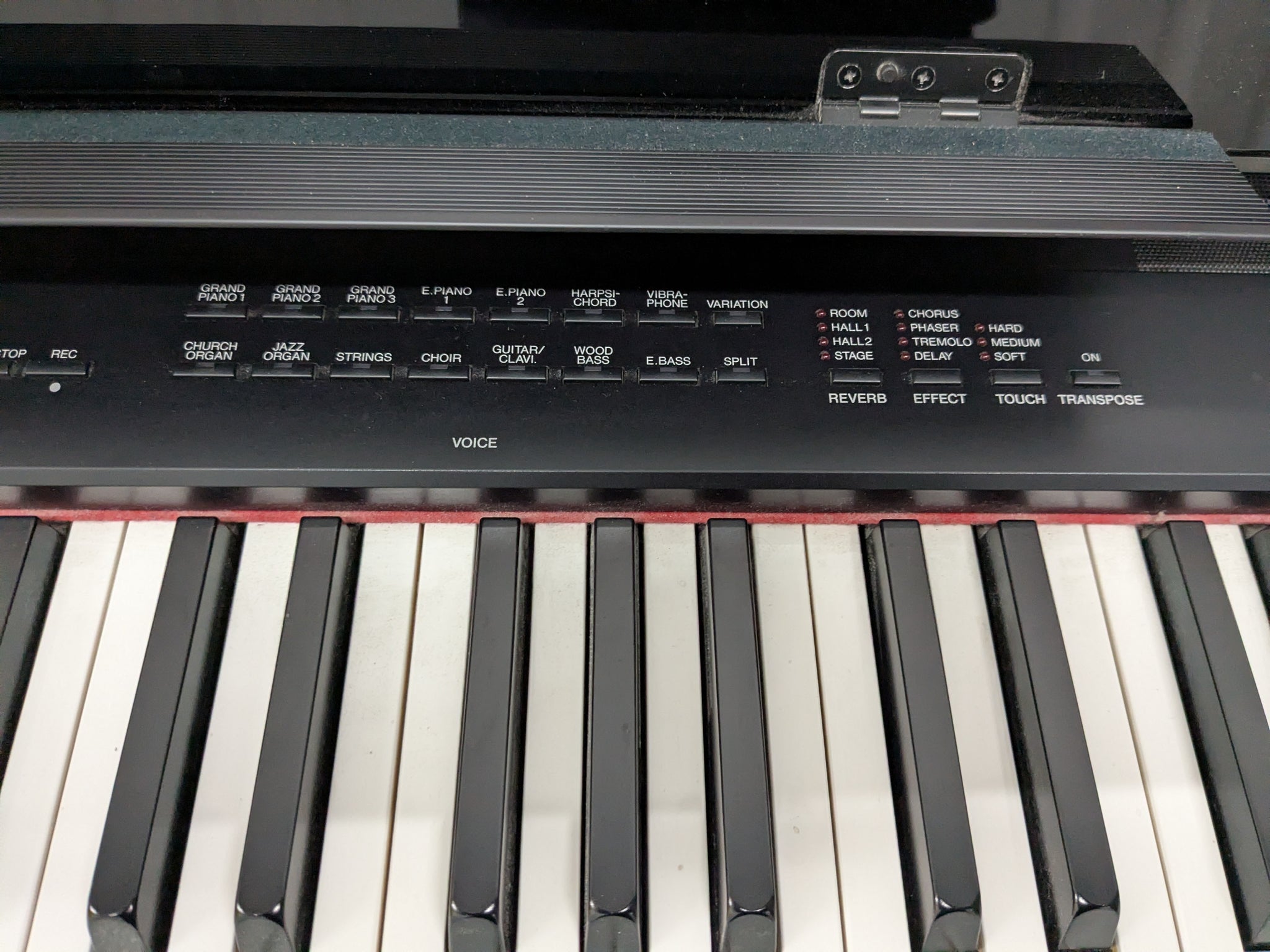

Preset | Number of Voices | 10 x 2 variations |
Types | Reverb | Yes |
Functions | Dual/Layers | Yes |
Split | Yes | |
Preset | Number of Preset Songs | 50 (Classic & Jazz) |
Recording | Number of Songs | 1 |
Number of Tracks | 1 | |
Data Capacity | 65KB (ca. 11,000 notes) | |
Recording Function | Yes | |
Compatible Data Format | Playback | SMF (Format 0 & 1), ESEQ |
Recording | SMF (Format 0) | |
Overall Controls | Metronome | Yes |
Tempo Range | 32 - 280 | |
Transpose | -12 to 0, 0 to +12 | |
Tuning | Yes | |
Storage | Internal Memory | 512KB |
External Drives | Option | |

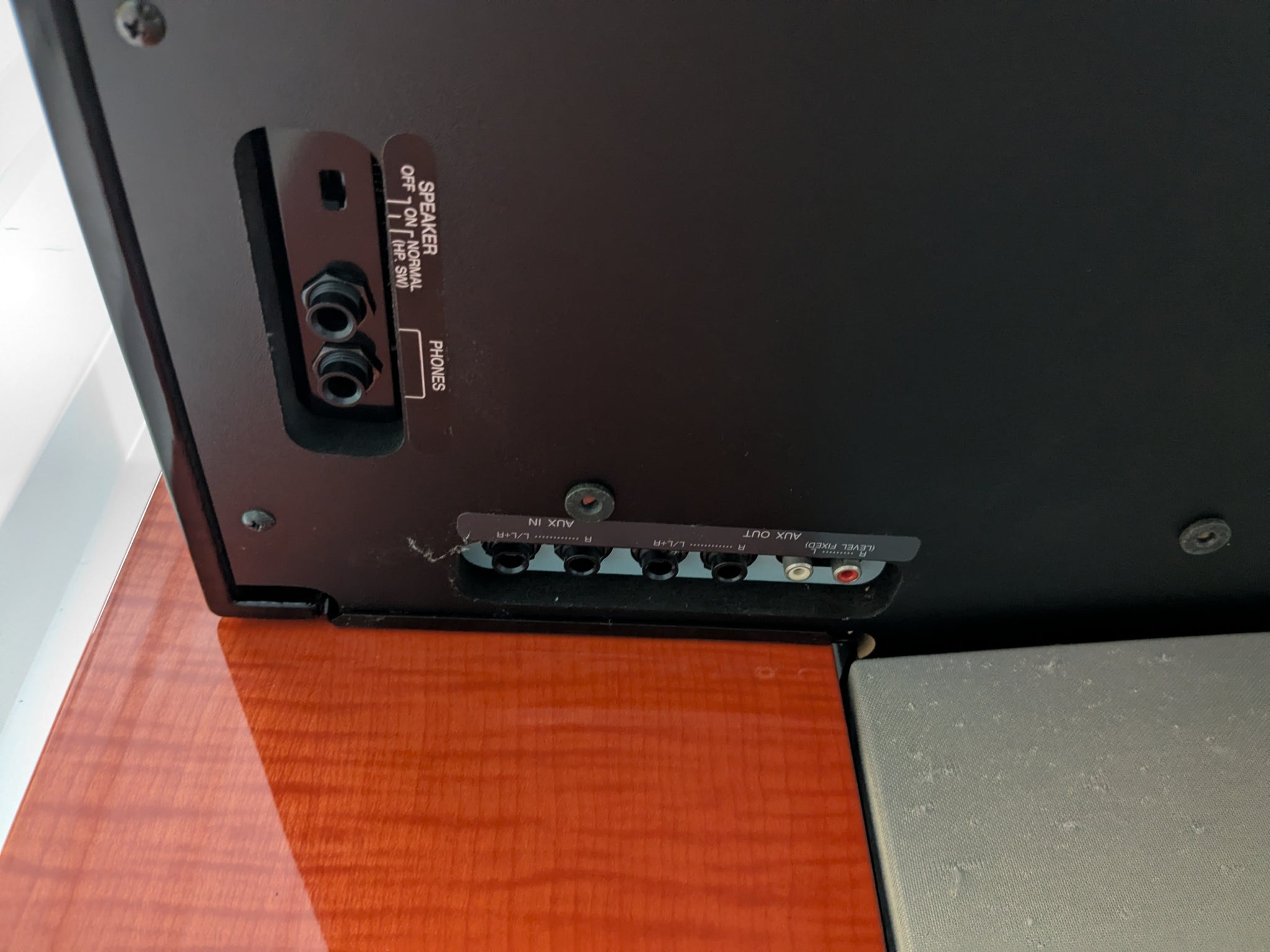

Connectivity | Headphones | x 2 |
MIDI | In/Out | |
AUX IN | Yes | |
AUX OUT | yes(Variable) | |
USB TO DEVICE | Yes | |
Amplifiers | 40W x 2 | |
Speakers | 16cm x 2 + 5cm x 2 |
